NDT EQUIPMENTS
ULTRASONIC MACHINE
The New Generation Ultrasonic Flaw Detector Advanscan AS-414 combines EECI years of experience and commitment to customers to provide the best Flaw Detector in its category by way of most advanced technology, convenience, uniqueness, affordability & technical options for ultrasonic applications in the market. The New Generation Ultrasonic Flaw Detector Model AS-414 incorporates the latest and most advanced Hardware & Software available in its unique friendly Interactive Architecture. The Hardware architecture includes Single Board Computer Circuitry for Best performance. The Software is based on the latest Windows platform with open architecture enabling gure to any required applications.it to upgrade and con The Tunable Square pulser offers best S:N ratio. The nation LCD display provides unmatched,large, High de stable & clear A-Scan representation in all type of lighting conditions. The rugged, lightweight, ergonomical design enables the operator to use in any environment conditions
KEY FEATURESNew Generation Technology with a built in powerful single board computer. Windows platform.
Easy ON LINE update & upgrade of new & revised software with latest features.
High Power Tunable square wave pulser for optimum S:N ratio.
Burst Mode: Improved S:N ratio. Burst pulser to get maximum energy generated by the probes.
Auto Adjusting PRF upto 1000Hz.
Rectication: RF, Full, Positive or Negative.Enhance: Cut off noise and get clear A Scan display.
User Friendly Interactive Architecture.
Simplified, easy to access menu based navigation
Single Encoder knob for selecting parameters and setting the values in FIne or coarse steps.
Dust proof Ethernet, USB & Charger connections.
Tough, light weight & durable industrial grade engineering plastic body.
Large, Bright, High Pixel Density for Crystal clear CRT grade display quality.
Standard/Dynamic DAC with Echo peak recording.
Li-Ion battery for long life.
Quick data transfer software.
Optional Software to upgrade DGS, AWS, TCG
MAGNETIC PARTICLE TESTING

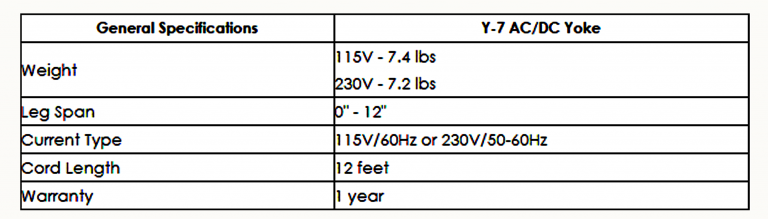

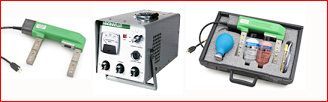

Y-7 AC/DC Magnetic Particle Inspection Yoke
The Magnavis7 Y- 7 AC/DC Magnetic Particle Yoke is designed for one-person portable magnetic particle inspections of ferrous parts. Ideal for inspection of welds and other remote testing. Articulating, double-jointed legs of yokes contour to any part shape to assure good contact.
Y-7 Core Benefits:Used to find both surface and near-surface discontinuities
Articulating, double-jointed legs contour to part's shape for superior contact
Solid state controls located in the yoke's housing for maximum safety and reliability
DYE PENETRANT TESTING
SK-416 Penetrant Inspection KitSpotcheck SK-416 Spotcheck Visible Red Dye Liquid Penetrant Kit. Everything you need to perform an inspection. Spotcheck products are the most reliable and widely used penetrant inspection method that reveals cracks and other surface discontinuities in virtually any non-porous material.
Spotcheck's formulation, using a high concentration of quality dyes, together with high quality solvents, provides the best possible dye penetrants for finding defects. Other products may skimp on dyes or use inferior solvents that cut costs. In doing so, indications do not appear as bright or vibrant and cracks can be missed. Some inferior solvents may also cause health hazards. Our developer's even spray pattern provides a uniform coating. Our Spotcheck products are the most widely used
The SK-416 Portable Kit includes everything needed to perform visible red dye liquid penetrant inspections. No ultraviolet black light is required for inspection. The kit comes in a portable plastic carrying case for easy transport to remote field locations.
Specifications Compliance:AMS-2644, AECL, ASME B & PV Code Sec V, ASTM E1417, MIL-STD 2132, ASTM E165, MIL-STD 271
Applications: Automobile Parts, Off-Road Equipment, Farm Equipment, Welds, Castings, Forgings, Leak Testing, Pressure Vessels, Aircraft, Marine, Construction, Maintenance, Petroleum Pipelines, Power Plant Inspections, General Metalwork.
